UHMWPE sheet usually refers to products with a molecular weight greater than 3 million.
The ultra-high molecular weight gives UHMWPE sheet many unique properties, such as chemical inertness, impact resistance and biocompatibility, making it suitable for use in harsh environments.
UHMWPE sheet has excellent wear resistance, good low temperature impact resistance, self-lubrication, non-toxic, water resistance, chemical resistance, heat resistance is better than general PE.
Our UHMWPE sheet comes in a variety of thicknesses, sizes, cut-to-size strips, blocks, grades, and colors. Grades include virgin, reprocessed, anti-static, food grade compliant, glass-filled, etc. Have UHMWPE sheet cut and machined into fabricated parts for your application.
 |
 |
 |
 |
| Parameter | Specification |
| Material | Ultra-High Molecular Weight Polyethylene (UHMWPE) |
| Thickness (Sheet) | 1mm - 100mm (customizable) |
| Diameter (Rod) | 5mm - 200mm (customizable) |
| Density | 0.93 - 0.94 g/cm3 |
| Tensile Strength | 30 - 40 MPa |
| Elongation at Break | 200% - 500% |
| Impact Strength | No break (excellent impact resistance) |
| Operating Temperature | -200°C to 80 °C |
| Water Absorption | <0.01% (24h immersion) |
| Coefficient of Friction | Low (excellent wear resistance) |

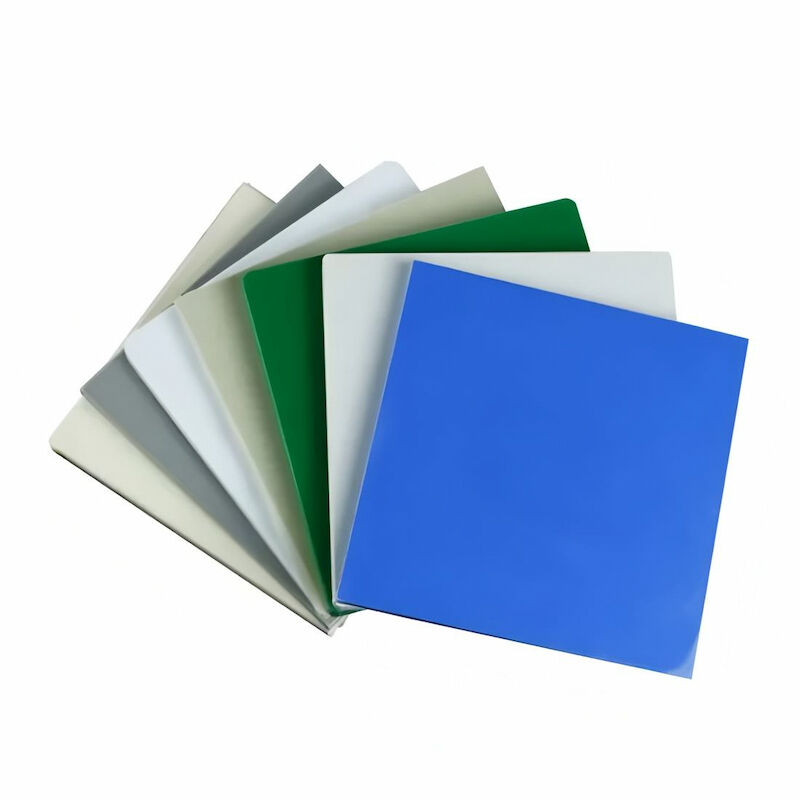

| Color | Natural (white), black, or custom colors |
| Surface Finish | Smooth |
| Applications | Wear strips, liners, bearings, gears, and conveyor components. |
1. Wear-resistant liners for industrial equipment (such as in power plants and cement plants)
2. Conveyor belt guide rails, rollers and other conveying components
3. Heavy machinery's sliding plates and bearing pads
4. Cutting boards, conveyor belts, and chute liners in the food industry
5. Buffer blocks for the automotive industry, interior impact-resistant components
6. Filter plates in the water treatment field, tank linings, and pipe connectors
◉ High impact resistance
◉ High abrasion resistance
◉ Low coefficient of friction
◉ Good chemical resistance
◉ Low water absorption
◉ Shock and noise absorption
◉ Excellent self-lubrication
◉ Temperature resistant (-200 to 80℃)
◉ Anti-fatigue, Anti-uv, Anti-Static, Acid Proof, Non-toxic, Solid
Q1: Why should you buy from us not from other suppliers?
Our company has advanced production equipment and excellent company team. The company's integrity and practicality, service follow-up, and product quality assurance have been praised and recognized by the industry.
Q2: How do I know your quality?
Free sample will be able to verify our quality;
Always final Inspection before shipment.
Q3: What's payment?
T/T,L/C,Western Union, Paypal etc.
Q4: Can you supply sample?
Yes, we can supply you free small samples,but the freight will be paid by customers.
Q5: Can you customize it?
Yes, we can do according to the drawing, also can put your logo on the products.
Q6: How long can I get the products ?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
